- Stock: In Stock
- Model: R36i MT RR
- Price: без включен ДДС

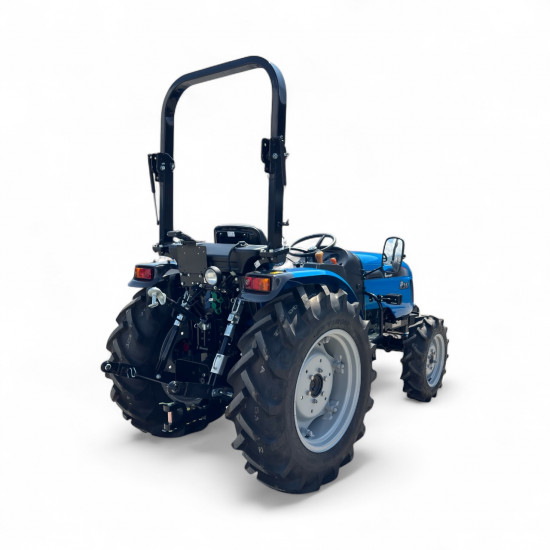

Orchard 38 HP with ROPS; Engine Mitsubishi ; synchro shuttle transmission 12x12; 4WD; hydrostatic steering system; rear independent PTO.
Tier III engine
Meets EU most stringent emission standards while delivering rated horsepower quietly with low vibration.

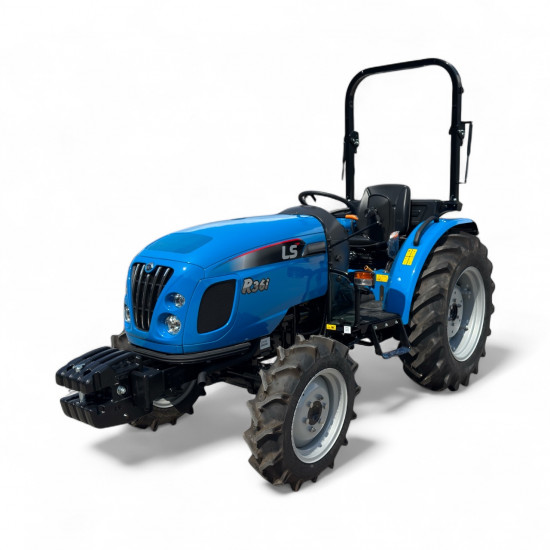

New front design
More stylish chrome plated front design.
Large Fuel Tank
Get larger fuel tank size (47ℓ ) for longer operation time and more convenience for fuel injection.
Transmission
F12 x R12 with Super creeper function provides the best performance for a variety of jobs.
Independent PTO
Independent PTO easily operated by switch on the dashboard.
Water proof Front Axle
Water and rust proof front axle features a strong structure and durability. It offers the best performance in paddy fields.
Easy & Convenient switch control panel
Enable to operate easily by switch control. 1. Hazard switch 2. Horn switch 3. Front work lamp 4. PTO auto/manual
Remote Valves
Max 2 pairs of remote valves ensure convenient use of any commercial application.

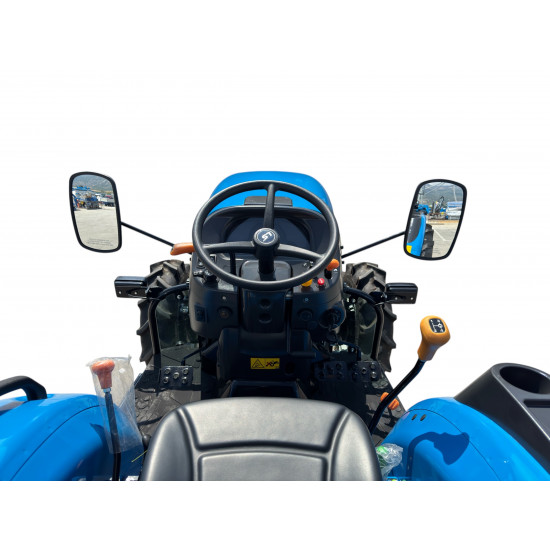

Hydrostatic power steering with tilt
Makes turning easier, improves control and reduces fatigue and enhances comfort.
Dimensions, weight and tires | |
Structure | ROPS rear foldable |
Total length | 3356 mm. |
Total width | 1402-1802 mm. |
Total height | 1730-2213 мм. |
Weight | 1285 kg. without ballast and liquids |
Front ballast | bumper 21 kg. / ballast 4x20 kg. |
Front tires | Agricultural 7-16 (4PR) |
Rear tires | Agricultural 12.4-24 (8PR) |
Engine | |
Model | S4L2 |
Type | 4-stroke, vertical, water cooling |
Number cylinders | 4 |
Displacement | 1758 cc |
Maximum torque | 104 Nm |
Power | 38 HP |
Fuel injection pump | Delphi |
Transmission | |
Type | synchro shuttle |
Clutch | Single disc dry |
Reverse | yes |
Differential lock | Mechanical pedal type |
Number of gears | 12 forward and 12 reverse |
PTO | |
Type | Independent rear PTO |
Number of speed gears | 540 rev/min |
Mid PTO | NA |
Hydraulic system | |
Three point linkage system | CAT1 |
Draft load detection | Upper link |
Rated oil flow | 31.2 LPM |
Oil pressure | 16.7 MPa |
Lift capacity at lower link end | 820 kgf |
Hydraulic outlets | 2 x Double acting (Spring return type) rear 2 x front outlets with joystick |
Steering system | |
Type | Hydraulic |
Minimum turning radius (with brake) | 2800 mm |
Number of steering turns | 3.7 turns (lock to lock) |
Rated oil flow | 15.6 LPM |
Oil pressure | 11.8 MPa |
Electrical system | |
Voltage | 12V |
Alternator | 12V-70A |
Starter | 12V - 2.2KW, Electric solenoid Type |
Lights | Headlights, Turn signal lights, Side lights, Stop lights, Work light |
