- Stock: In Stock
- Model: XR50 MT CAB
- Price: без включен ДДС

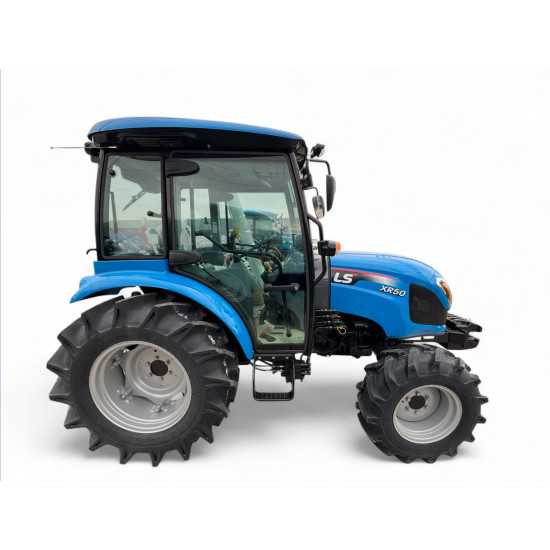

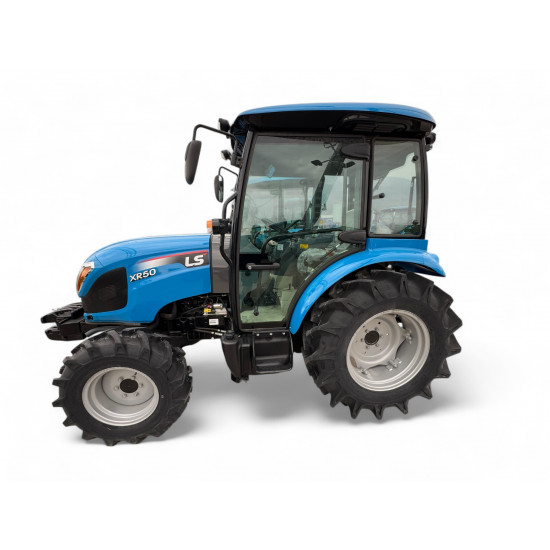

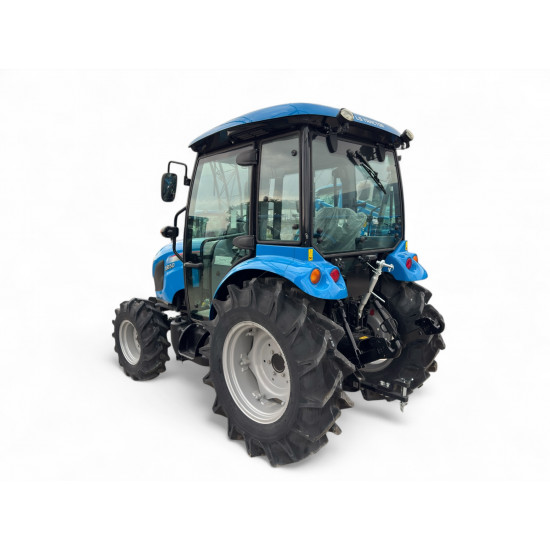

Orchard 50 HP with cabin; Engine Mitsubishi ; synchro shuttle transmission 16x16; 4WD; hydrostatic steering system; rear independent PTO.
Tier III engine
Meets EU most stringent emission standards while delivering rated horsepower quietly with low vibration.

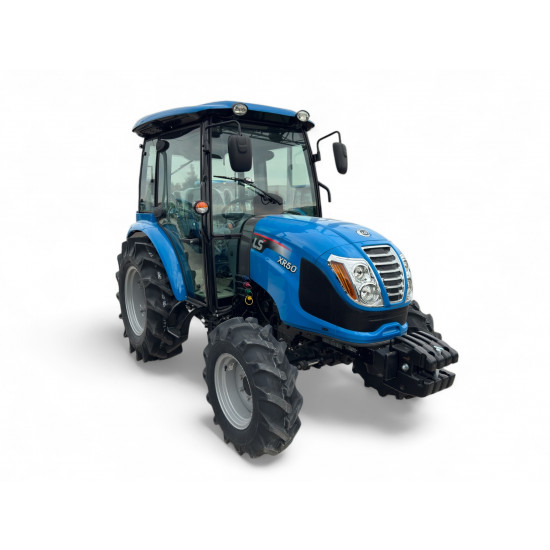

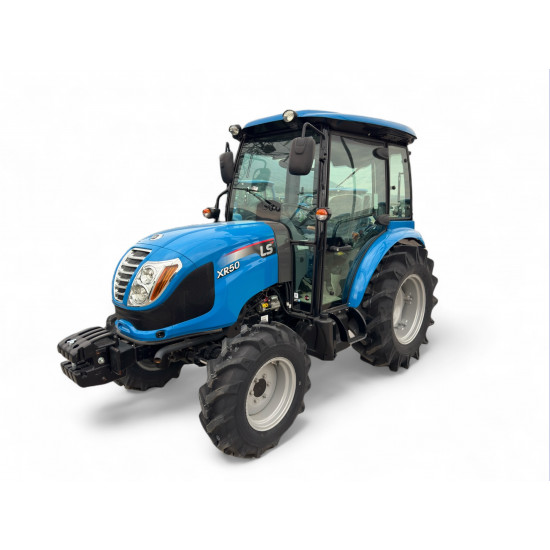

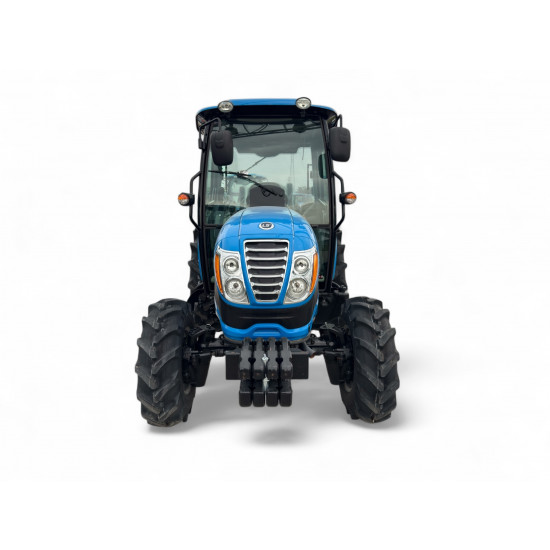

New front design
More stylish chrome plated front design.
Ergonomically designed 3-point hitch controls and fender mounted joystick
Easily accessible for maximum comfort and convenience.
Large Fuel Tank
Get larger fuel tank size (47ℓ ) for longer operation time and more convenience for fuel injection.
Transmission
F16 x R16 with synchro shuttle function provides the best performance for a variety of jobs
Independent PTO
Independent PTO 3 speed easily operated by switch on the dashboard.
Water proof Front Axle
Water and rust proof front axle features a strong structure and durability. It offers the best performance in paddy fields.
Easy & Convenient switch control panel
Enable to operate easily by switch control. 1. Hazard switch 2. Horn switch 3. Front work lamp 4. PTO auto/manual
Remote Valves
Max 2 pairs of remote valves ensure convenient use of any commercial application.
Hydrostatic power steering with tilt
Makes turning easier, improves control and reduces fatigue and enhances comfort.
Dimensions, weight and tires | |

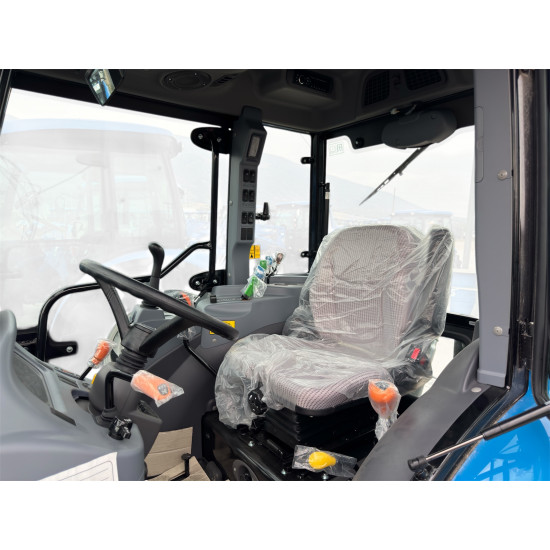

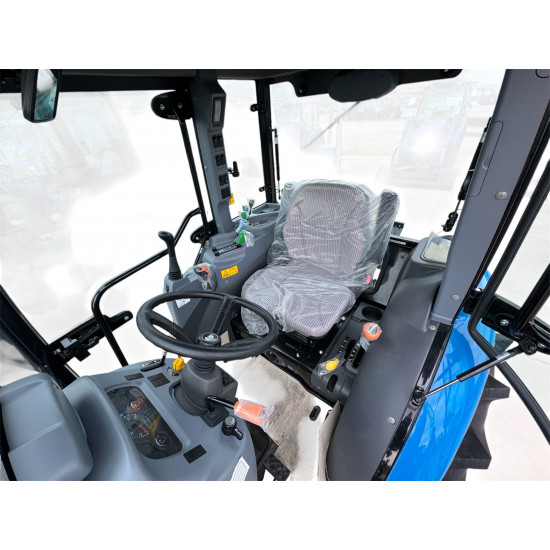

Structure | Cabin with AC, filtration, heating, stereo |
Total length | 3607 mm. |
Total width | 1458-1858 mm. |
Total height | 2330 mm. |
Weight | 1950 kg. without ballast and liquids |
Front ballast | bumper 21 kg. / ballast 4x20 kg. |
Front tires | Agricultural 9.5-16 (4PR) |
Rear tires | Agricultural 13.6-24 (8PR) |
Engine | |
Model | S4QL |
Type | 4-stroke, vertical, water cooling |
Number cylinders | 4 |
Displacement | 2505 cc |
Maximum torque | 170 Nm |
Power | 50 HP |
Fuel injection pump | Delphi |
Transmission | |
Type | synchro shuttle |
Clutch | Single disc dry |
Reverse | yes |
Differential lock | Mechanical pedal type |
Number of gears | 16 forward and 16 reverse |
PTO | |
Type | Independent rear PTO |
Number of speed gears | 540, 750 (540E), 1000 rev/min |
Mid PTO | NA |
Hydraulic system | |
Three point linkage system | CAT1 |
Draft load detection | Upper link |
Rated oil flow | 31.2 LPM |
Oil pressure | 16.7 MPa |
Lift capacity at lower link end | 1250 kgf |
Hydraulic outlets | 2 x Double acting (Spring return type) rear 2 x front outlets with joystick |
Steering system | |
Type | Hydraulic |
Minimum turning radius (with brake) | 2750 mm |
Number of steering turns | 2.8 turns (lock to lock) |
Rated oil flow | 15.6 LPM |
Oil pressure | 14.2 MPa |
Electrical system | |
Voltage | 12V |
Alternator | 12V-70A |
Starter | 12V - 2.2KW, Electric solenoid Type |
Lights | Headlights, Turn signal lights, Side lights, Stop lights, Work light |
