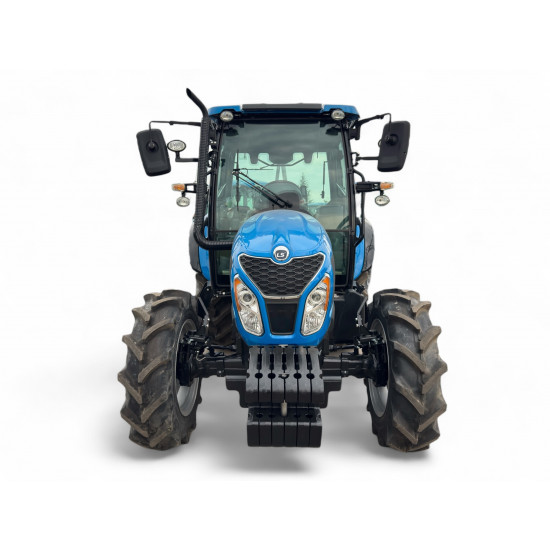

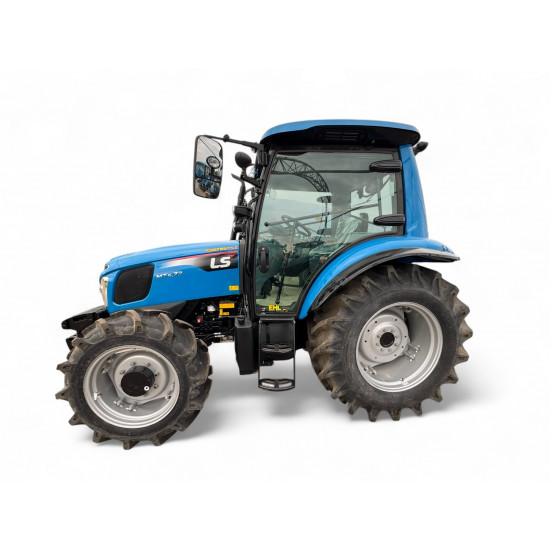

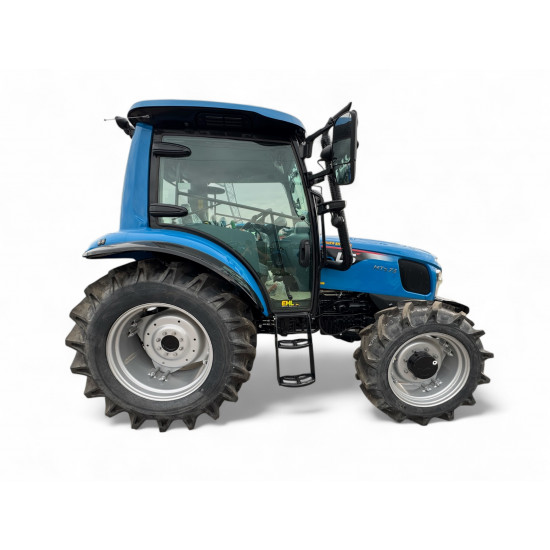

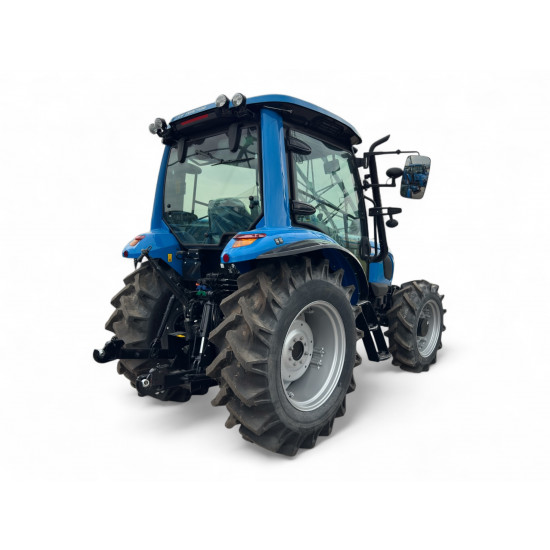

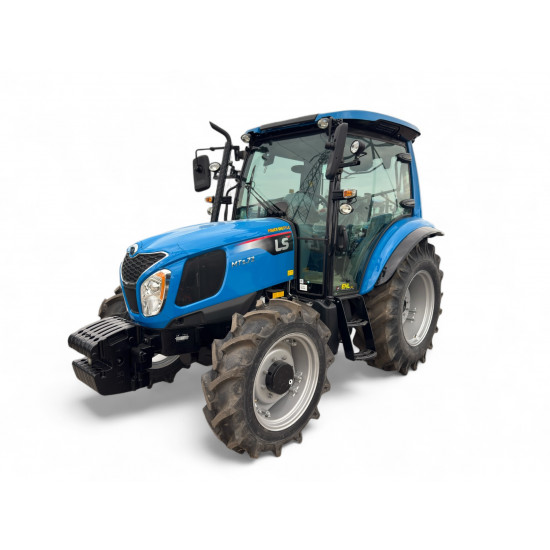

MT5.73 PS CAB (73 HP)

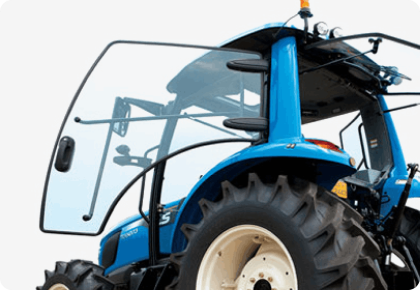

Original LS cabin
Оригинална заводска кабина от LS. Херметизирана, филтрирана, обезшумена, озвучена, климатизирана.
- Stock: In Stock
- Model: MT5.73 PS CAB
- Price: без включен ДДС
0.00 лв.
Utility tractor 73 HP with cabin; Engine Mitsubishi 4 -cylinder; power shuttle transmission; 4WD; hydrostatic steering system; rear independent PTO. ..
Utility tractor 73 HP with cabin; Engine Mitsubishi 4 -cylinder; power shuttle transmission; 4WD; hydrostatic steering system; rear independent PTO.

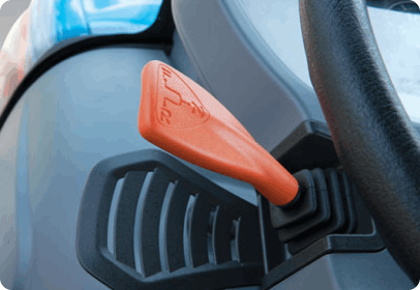

STANDARD FULLY SYNCHRONIZED TRANSMISSION & 20 X 20 (WITH CREEP) POWERSHUTTLE
Change gears without having to stop. 20 forward / 20 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application. CPS models feature 20×20 (with creep) Powershuttle.
HAND CLUTCH
The hand clutch button added to the gear control lever enables you to change gears easily and with comfort.

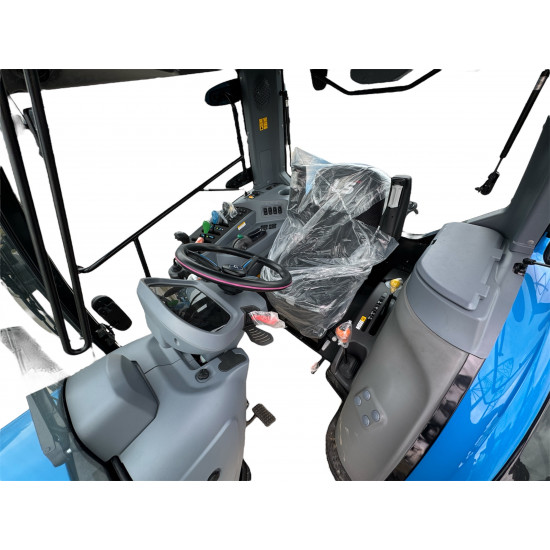

ROOMY CAB WITH AC/HEAT

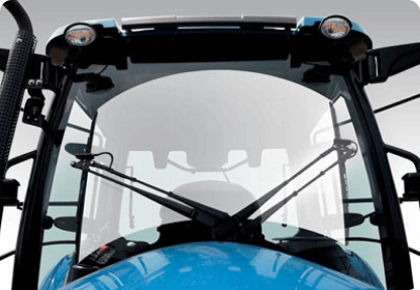

Comes standard with side mirrors, front washer/wiper, interior lighting, air conditioning and heat, flat platform and rubber mat.
STANDARD 3 SETS OF REMOTE VALVES WITH DETENT
Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.

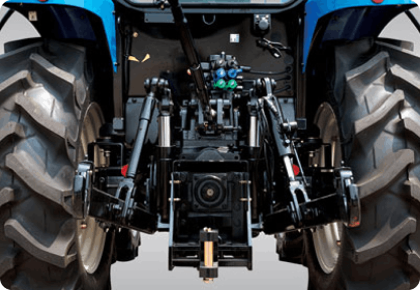

EXTENDABLE LOWER LINKS
Allows easier attachment of a wide variety of implements with a 6,614 lb. lift capacity.
LARGE FUEL TANK
Provides long operation times between fill-ups.
LS TIER4 ENGINE
Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather.
MODERN ERGONOMIC DESIGN
Ergonomically designed for comfort.
STANDARD REAR WORK LIGHT
Adjustable light to improve visibility where you need it.
STANDARD DRAW BAR
Increases the usefulness of the tractor without the additional optional cost.
7 PIN CONNECTOR
Provides electrical power for implements when needed.
Dimensions, weight and tires | |
Structure | Cabin with AC, filtration, heating, stereo |
Total length | 4235 mm. |
Total width | 1891-2291 mm. |
Total height | 2640 mm. |
Weight | 3007 kg. without ballast and liquids |
Front ballast | bumper 42 kg. / ballast 8x40 kg. |
Front tires | Agricultural 11.2-24 (8PR) |
Rear tires | Agricultural 16.9-30 (8PR) |
Engine | |
Model | L4C25-T1A |
Type | 4-stroke, vertical, water cooling CRDI |
Number cylinders | 4 |
Displacement | 2505 cc |
Maximum torque | 276 Nm |
Power | 73 HP |
Fuel injection pump | CRDI |
Transmission | |
Type | power shuttle |
Clutch | Wet clutch disks |
Reverse | yes |
Differential lock | Electro-hydraulic differential lock (EHD) |
Number of gears | 20 forward and 20 reverse |
PTO | |
Type | Independent rear PTO |
Number of speed gears | 3 speed - 540, 540E (750), 1000 rev/min |
Mid PTO | NA |
Hydraulic system | |
Three point linkage system | CAT2 |
Draft load detection | Upper link |
Rated oil flow | 50.0 LPM |
Oil pressure | 19 MPa |
Lift capacity at lower link end | 3000 kgf |
Hydraulic outlets | 3 x Double acting (Spring return type) |
Steering system | |
Type | Hydraulic |

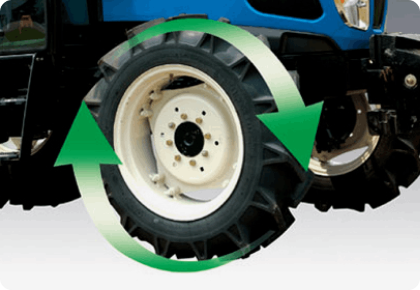

Minimum turning radius (with brake) | 3427 mm |
Number of steering turns | 3.6 turns (lock to lock) |
Rated oil flow | 25.0 LPM |
Oil pressure | 14.5 MPa |
Electrical system | |
Voltage | 12V |
Alternator | 12V-70A |
Starter | 12V - 2.0KW, Electric solenoid Type |
Lights | Headlights, Turn signal lights, Side lights, Stop lights, Work light |
