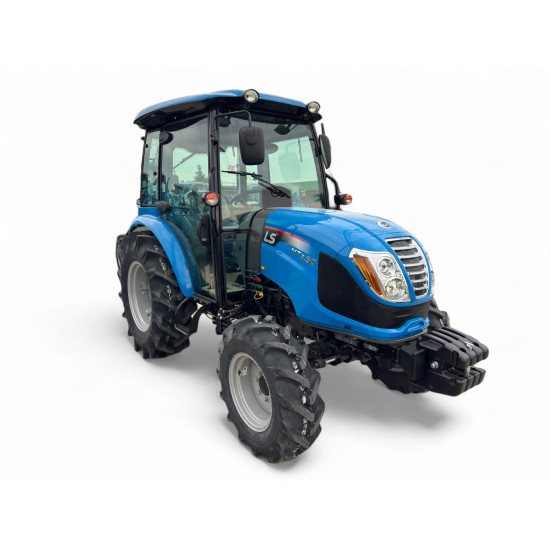

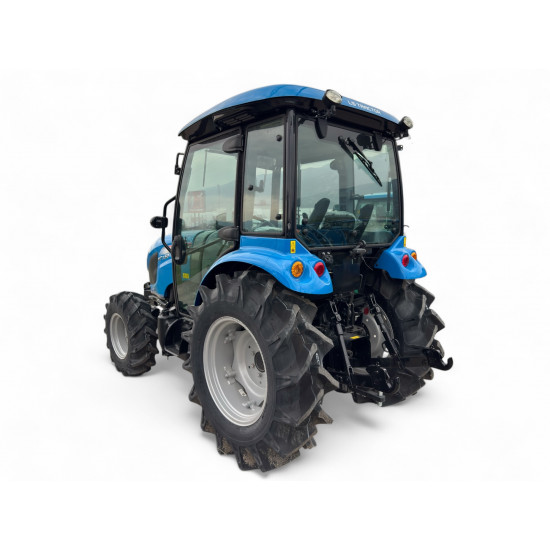

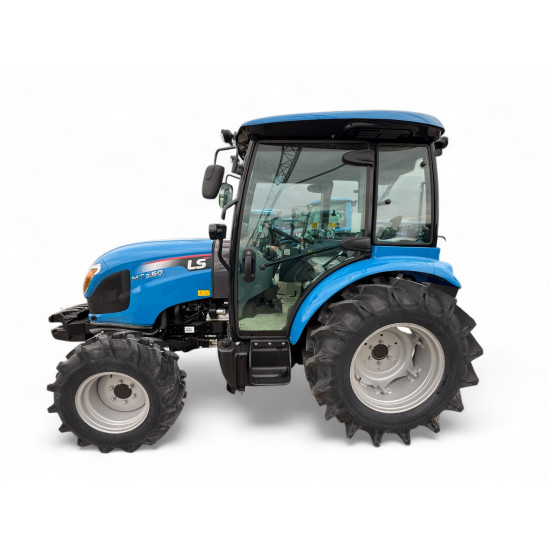

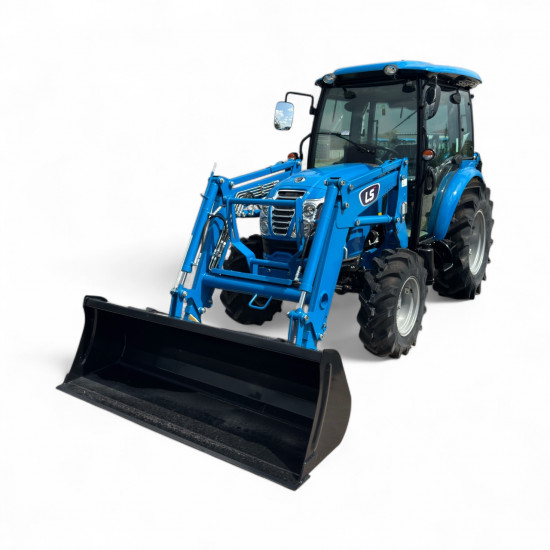

LS - MT3.60 MT CAB (60 HP)

LS - MT3.60 MT CAB (60 HP)

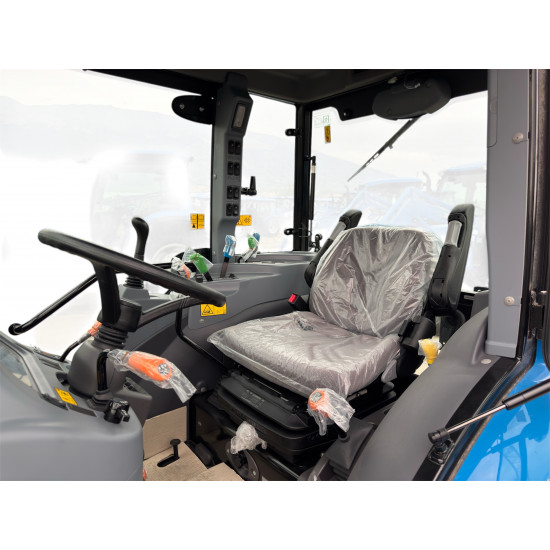

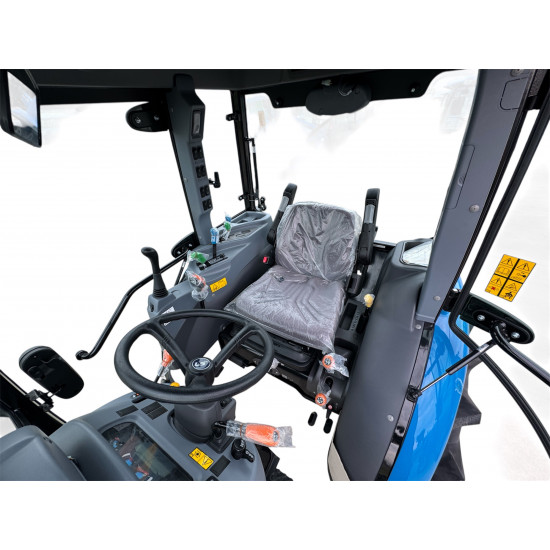

Original LS cabin
Оригинална заводска кабина от LS. Херметизирана, филтрирана, обезшумена, озвучена, климатизирана.
  • Stock: In Stock
  • Model: MT3.60 MT CAB
  • Price: без включен ДДС
0.00 лв.
Orchard 60 HP with cabin; Engine Mitsubishi ;  synchro shuttle transmission 24x24; 4WD; hydrostatic steering system; rear independent PTO.            ..

Orchard 60 HP with cabin; Engine Mitsubishi ;  synchro shuttle transmission 24x24; 4WD; hydrostatic steering system; rear independent PTO.

Tier 5 engine

Meets EU most stringent emission standards while delivering rated horsepower quietly with low vibration.

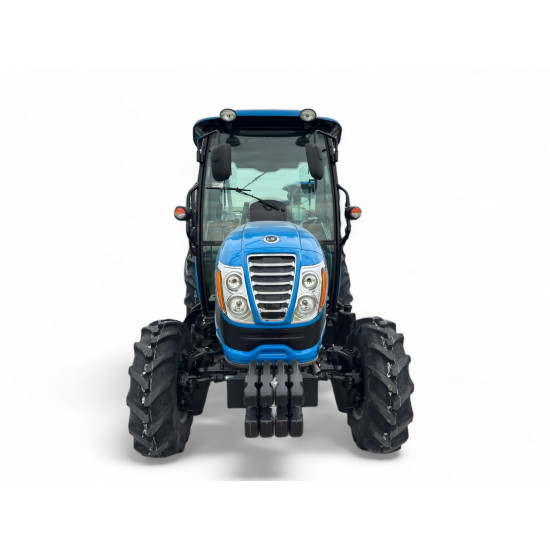

New front design

More stylish chrome plated front design.

Ergonomically designed 3-point hitch controls and fender mounted joystick

Easily accessible for maximum comfort and convenience.

Large Fuel Tank

Get larger fuel tank size (47ℓ ) for longer operation time and more convenience for fuel injection.


F24 x R24 with Super creeper function provides the best performance for a variety of jobs

Independent PTO

Independent PTO 3 speed easily operated by switch on the dashboard.

Water proof Front Axle

Water and rust proof front axle features a strong structure and durability. It offers the best performance in paddy fields.


Easy & Convenient switch control panel

Enable to operate easily by switch control. 1. Hazard switch 2. Horn switch 3. Front work lamp 4. PTO auto/manual


Remote Valves

Max 2 pairs of remote valves ensure convenient use of any commercial application.

Hydrostatic power steering with tilt

Makes turning easier, improves control and reduces fatigue and enhances comfort.

Dimensions, weight and tires
Structure Cabin with AC, filtration, heating, stereo
Total length 3620 mm.
Total width 1458-1858 mm.
Total height 2330 mm.
Weight 1950 kg. without ballast and liquids
Front ballast bumper 21 kg. / ballast 4x20 kg.
Front tires Agricultural 9.5-16 (4PR)
Rear tires Agricultural 13.6-24 (8PR)
Model L3CRV-T7
Type 4-stroke, vertical, water cooling CRDI
Number cylinders 3
Displacement 1879 cc
Maximum torque 188 Nm
Power 60 HP
Fuel injection pump Delphi CRDI
Type synchro shuttle with creeper and GSP
Clutch Single disc dry
Reverse yes
Differential lock Mechanical pedal type
Number of gears 24 forward and 24 reverse
Type Independent rear PTO
Number of speed gears 540, 750 (540E), 1000 rev/min
Hydraulic system

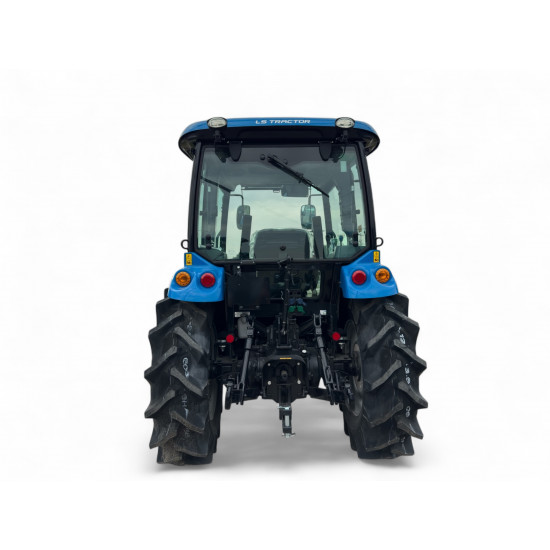

Three point linkage system CAT1
Draft load detection Upper link
Rated oil flow 30.9 LPM
Oil pressure 17.5 MPa
Lift capacity at lower link end 1250 kgf

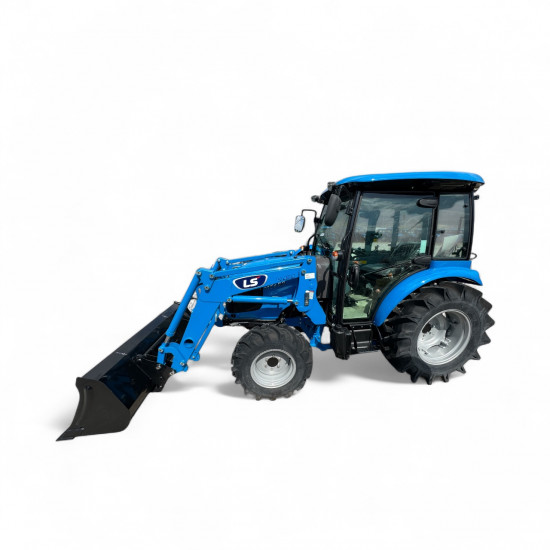

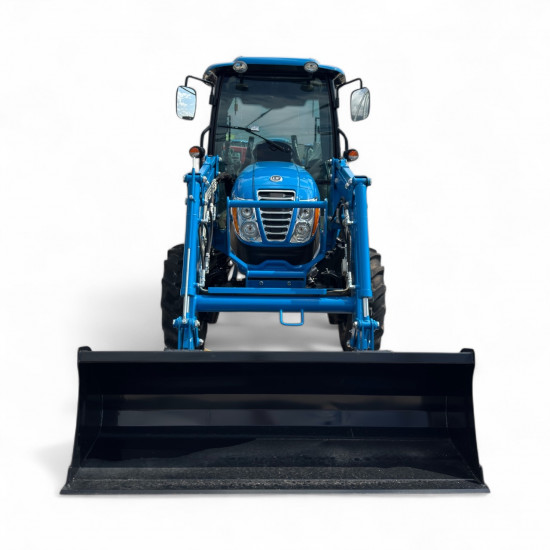

Hydraulic outlets 2 x Double acting (Spring return type) rear 2 x front outlets with joystick
Steering system
Type Hydraulic
Minimum turning radius (with brake) 2800 mm
Number of steering turns 3.9 turns (lock to lock)
Rated oil flow 15.6 LPM
Oil pressure 14.2 MPa
Electrical system
Voltage 12V
Alternator 12V-70A
Starter 12V - 2.2KW, Electric solenoid Type
Lights Headlights, Turn signal lights, Side lights, Stop lights, Work light
