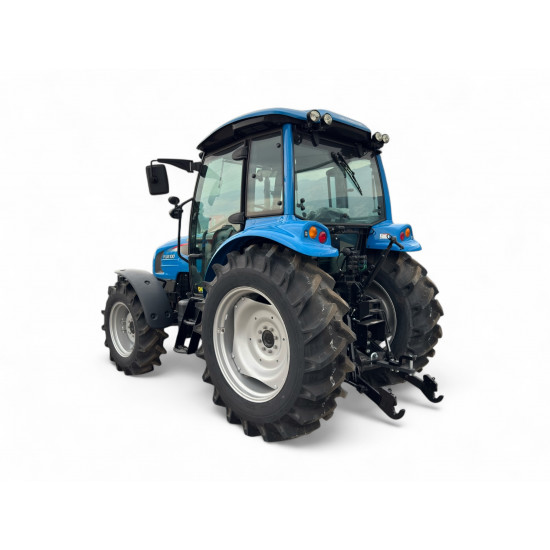

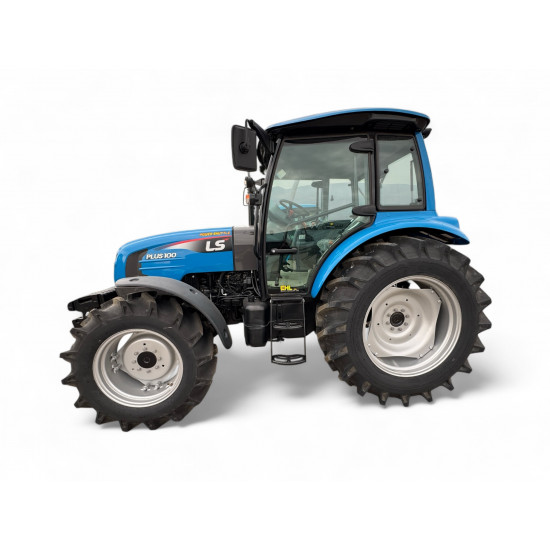

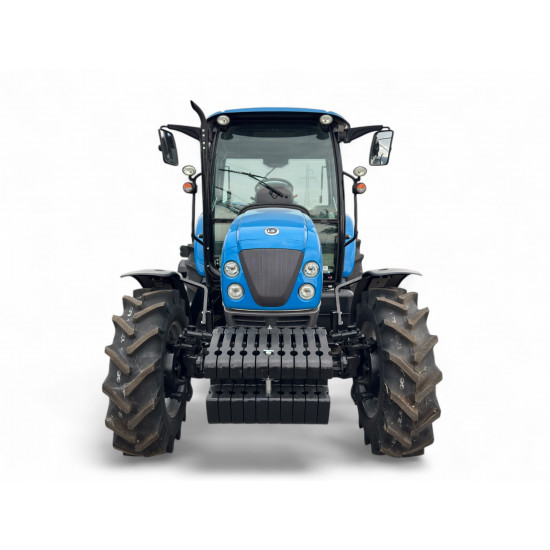

PLUS100 PS CAB (100 HP)

PLUS100 PS CAB (100 HP)
This product qualifies for free shipping
It will be delivered directly to your farm by our trucks
  • Stock: In Stock
  • Model: PLUS100 PS CAB
  • Price: без включен ДДС
78,000.00 лв.
Utility tractor 100 HP with cabin; Engine IVECO 4 -cylinder;  power shuttle transmission; 4WD; hydrostatic steering system; rear independent PTO.     ..

Utility tractor 100 HP with cabin; Engine IVECO 4 -cylinder;  power shuttle transmission; 4WD; hydrostatic steering system; rear independent PTO.

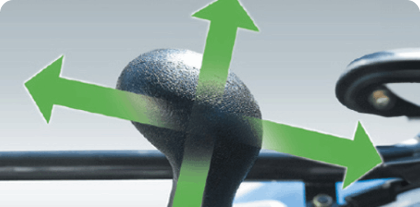

HIGH CAPACITY LOADER

High Performing Lift Capacity, Among The Industry Leaders In Lift Height (139.9 in.)

GOODYEAR LSW TIRES

Enable Better Traction, Less Field Compaction

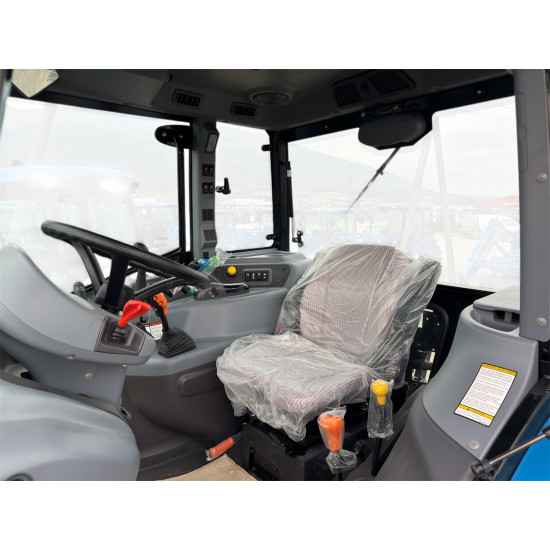

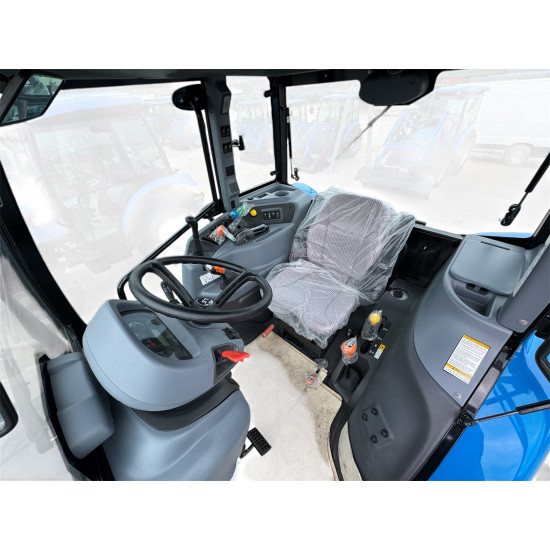

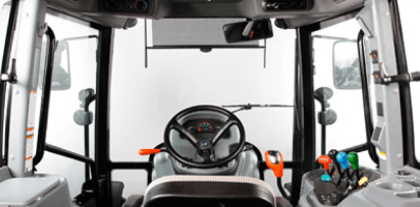

SPACIOUS CAB

Providing a Roomy Climate Controlled Working Environment

STANDARD FACTORY GRILLE GUARD W/LOADER

Full Length Grille Guard Protects Body Panels And Radiator

DURABILITY AND CAPACITY

Heavy-Duty Frame And Lift Cylinders Enable Three-Point Lift Capacity Up To 5,139 lbs.

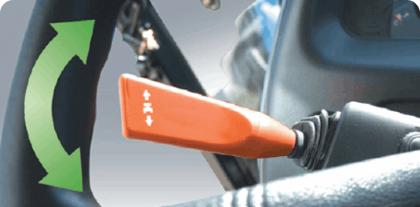

POWER SHUTTLE TRANSMISSION

Provides Efficiency And Comfort In Demanding Applications (Standard)

RIGHT-SIDE CAB ACCESS

Enables Operators To Access Both Sides Of The Cab (Door And Steps)

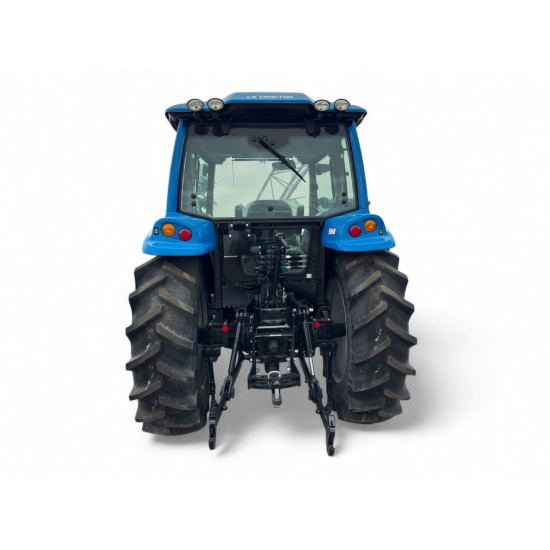

FOUR STANDARD REAR WORKLIGHTS

Provides Significant Illumination During Night Operation

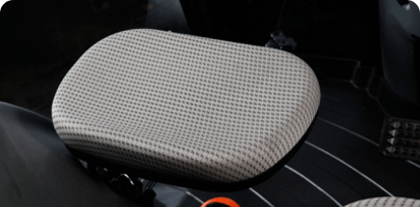

ERGONOMIC DESIGN

Provide Access To Controls For A Variety Of Applications

Dimensions, weight and tires
Structure Cabin with AC, filtration, heating, stereo
Total length 4342 mm.
Total width 2009-2297 mm.
Total height 2650 mm.
Weight 3650 kg. without ballast and liquids
Front ballast bumper 60 kg. / ballast 10x40 kg.
Front tires Agricultural 12.4-24 (8PR)
Rear tires Agricultural 16.9-34 (8PR)
Engine
Model NEF-71TAA-71kW
Type 4-stroke, vertical, water cooling
Number cylinders 4
Displacement 4485 cc
Maximum torque 398 Nm
Power 100 HP
Fuel injection pump Bosch Distributional
Transmission
Type power shuttle
Clutch Wet clutch disks
Reverse yes PS
Differential lock Electro-hydraulic differential lock (EHD)
Number of gears 40 forward and 40 reverse с Hi-Lo
PTO
Type Independent rear PTO
Number of speed gears 3 speed - 540, 540E (750), 1000 rev/min
Mid PTO NA
Hydraulic system
Three point linkage system CAT2
Draft load detection Upper link
Rated oil flow 55.7 LPM
Oil pressure 18.6 MPa
Lift capacity at lower link end 2820 kgf
Hydraulic outlets 3 x Double acting (Spring return type)

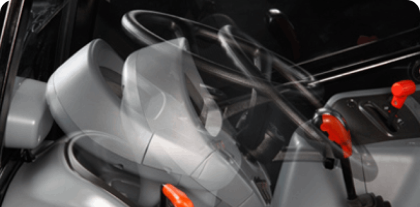

Steering system
Type Hydraulic
Minimum turning radius (with brake) 3500 mm
Number of steering turns 4 turns (lock to lock)
Rated oil flow 24.8 LPM
Oil pressure 14.2 MPa
Electrical system
Voltage 12V
Alternator 14V-1.68 kW
Starter 12V - 3.2KW, Electric solenoid Type

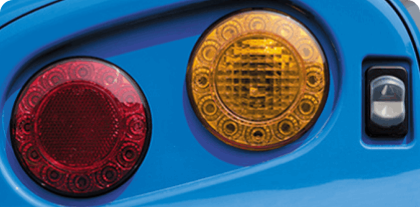

Lights Headlights, Turn signal lights, Side lights, Stop lights, Work light
