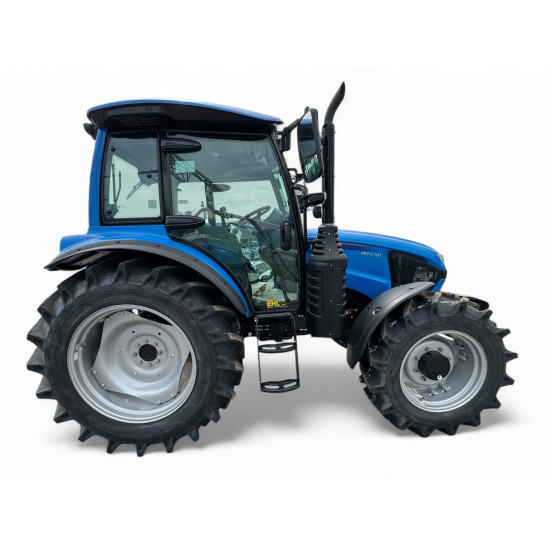

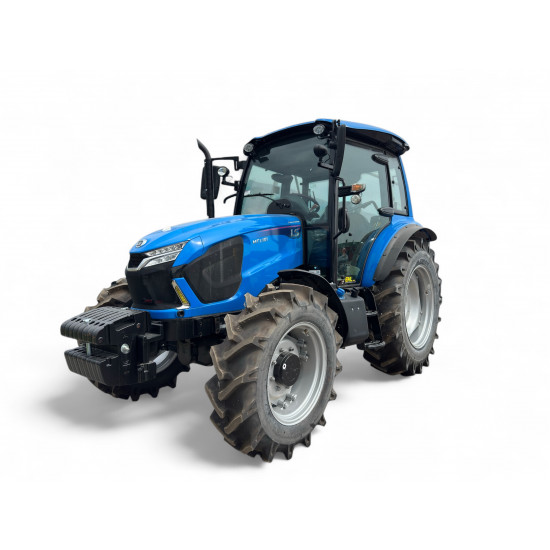

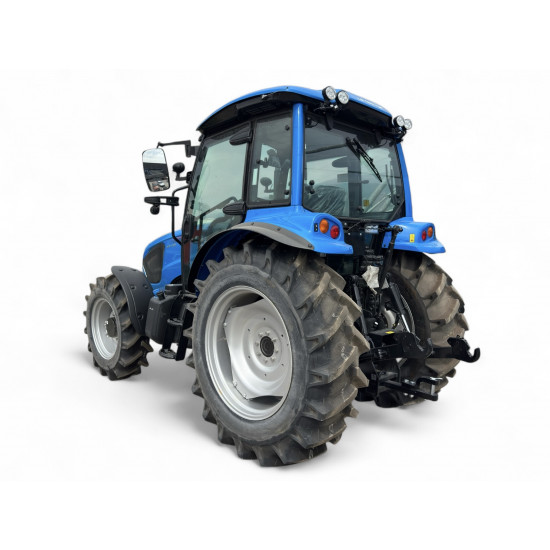

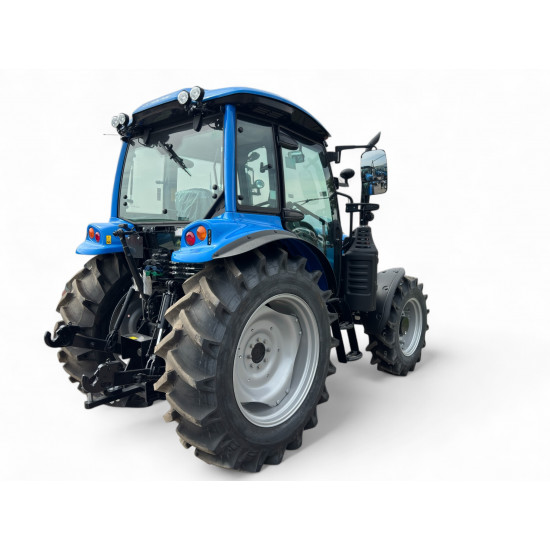

LS MT7.101 PS CAB Tractor

LS MT7.101 PS CAB Tractor

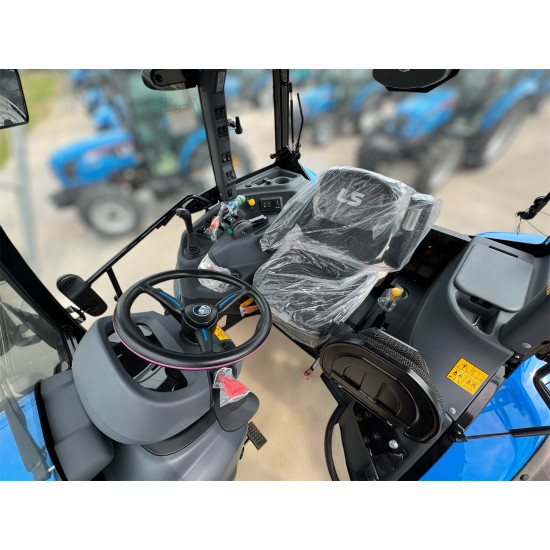

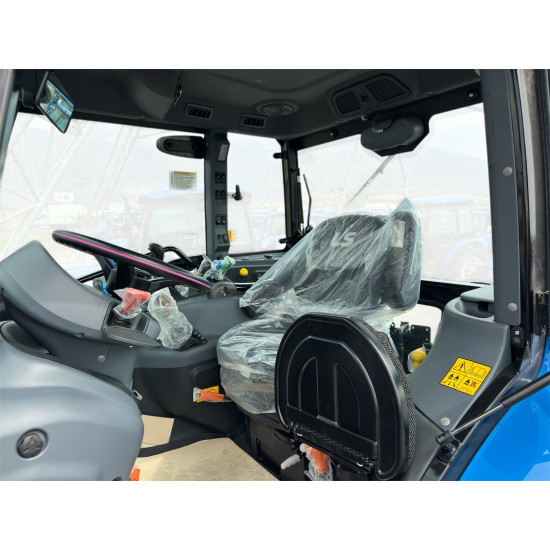

Original LS cabin
Оригинална заводска кабина от LS. Херметизирана, филтрирана, обезшумена, озвучена, климатизирана.
  • Stock: In Stock
  • Model: MT7.101 PS CAB
  • Weight: 4,050.00kg
  • Power: 101 к.с.
  • Gearbox: Power Shuttle
  • Location: Карлово
  • Price: без включен ДДС
0.00 лв. (€0.00)
Dimensions, weight and tires
Structure Cabin with AC, filtration, heating, stereo
Total length 4350 mm.
Total width 1967-2367 mm.
Total height 2679 mm.
Weight 4050 kg. without ballast and liquids
Front ballast bumper 60 kg. / ballast 8x40 kg.
Front tires Agricultural 12.4-24 (8PR)
Rear tires Agricultural 16.9-34 (8PR)
Engine
Model F5G-75kW
Type 4-stroke, vertical, water cooling CRDI
Number cylinders 4
Displacement 3595 cc
Maximum torque 430 Nm
Power 101 HP
Fuel injection pump Bosch CP4.11
Transmission

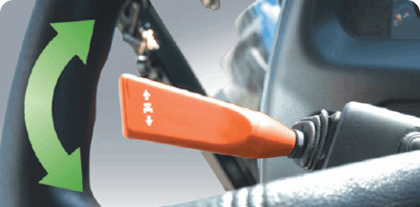

Type power shuttle
Clutch Wet clutch disks
Reverse yes PS
Differential lock Electro-hydraulic differential lock (EHD)
Number of gears 40 forward and 40 reverse с Hi-Lo
PTO
Type Independent rear PTO
Number of speed gears 3 speed - 540, 540E (750), 1000 rev/min
Mid PTO NA
Hydraulic system
Three point linkage system CAT2
Draft load detection Upper link
Rated oil flow 59.4 LPM
Oil pressure 18.6 MPa
Lift capacity at lower link end 3290 kgf
Hydraulic outlets 3 x Double acting (Spring return type)
Steering system
Type Hydraulic
Minimum turning radius (with brake) 3500 mm
Number of steering turns 4 turns (lock to lock)
Rated oil flow 24.8 LPM
Oil pressure 14.2 MPa
Electrical system
Voltage 12V
Alternator 14V-1.68 kW
Starter 12V - 3.2KW, Electric solenoid Type
Lights Headlights, Turn signal lights, Side lights, Stop lights, Work light

Top quality, modern design

LS Tractor MT7 is a unique series of the brand – it is characterized by modernity and versatility. It includes many premium features. The series is designed for different soil types, as well as the specific needs of farmers who need a robust and efficient vehicle for farm work. The MT 7 stands out for its excellent performance and reliability. Thanks to the use of innovative technology and the availability of attachments dedicated to LS tractors, this machine will be a reliable work partner.

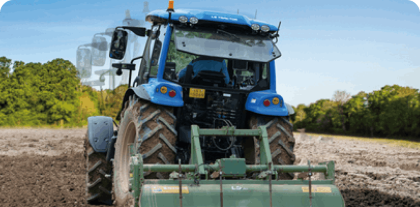

Automatic Level Control

Precisely detects the undulations and slopes of the field, maintaining the imple ment level at all times.



PowerShift and Auto Mode

PowerShift : Allows 8-speed transmission changes with button controls only.

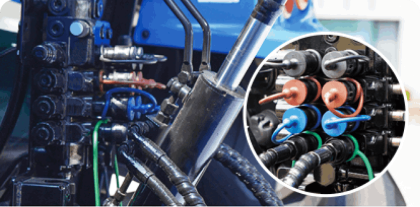

Four Pairs of Quick Coupler-Type Hydraulic Valves (Applicable to certain models) :

Provides four pairs of rear hydraulic valves for attaching various hydraulic implements.

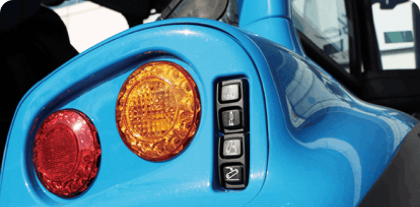

External Control Buttons

Located outside for easy control of level adjustment and 3-point hitch raising/ lowering, facilitating convenient attachment and detachment of implements.
