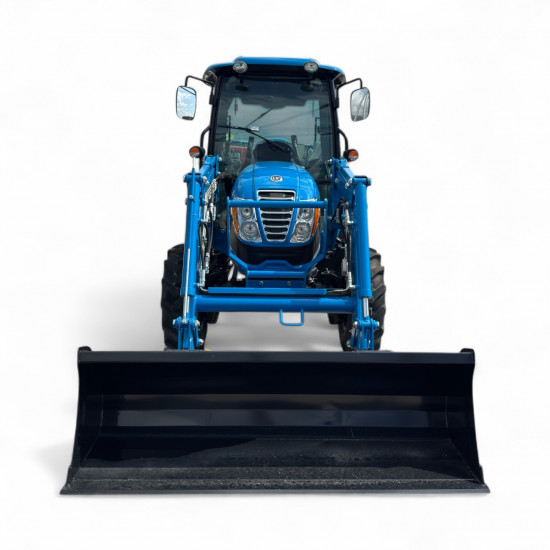

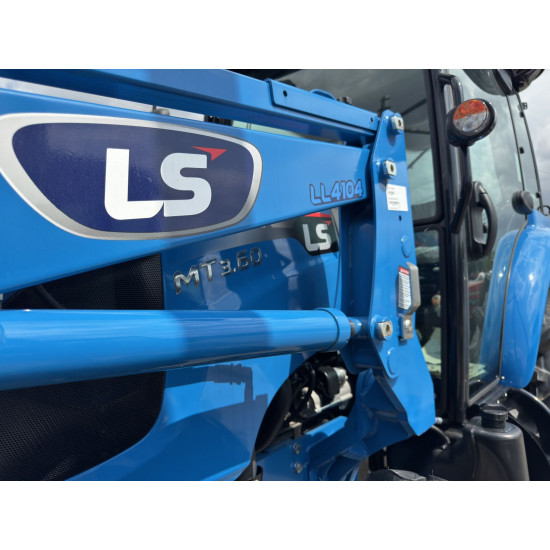

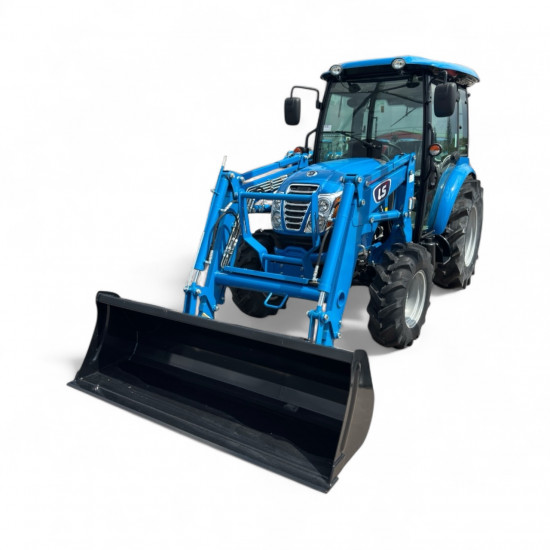

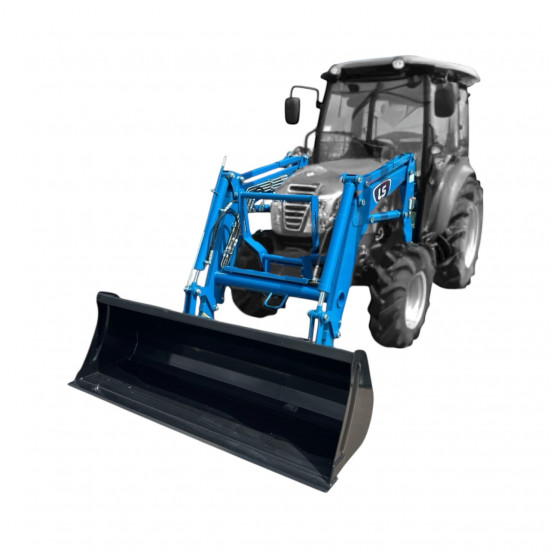

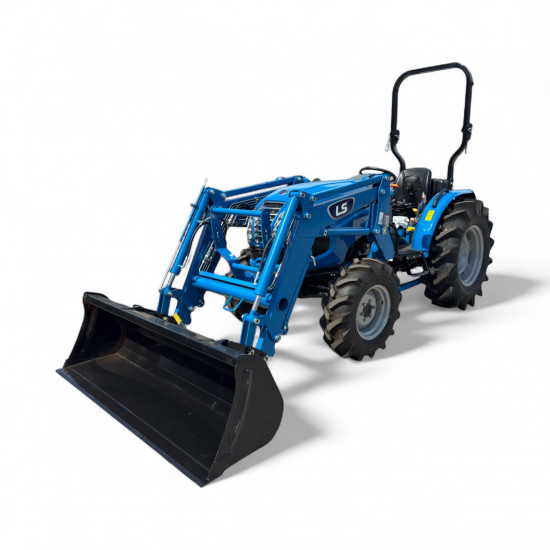

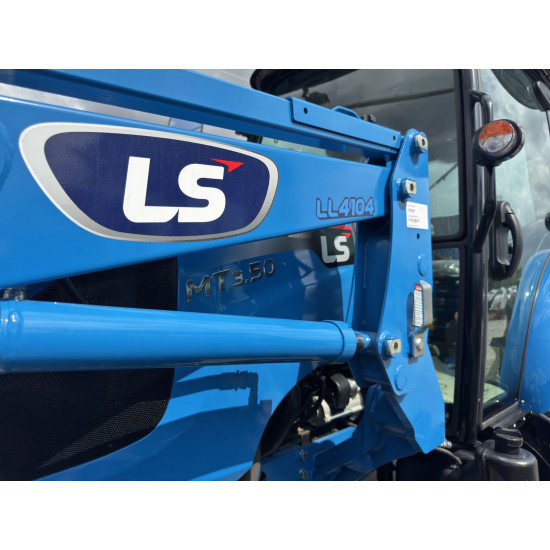

Front Loader LS - LL4104 (for tractor MT3.50, MT3.60)

Front Loader LL4104 made in Korea by LS Tractor. High quality. Quick coupler EURO type. Compatible with tractor LS MT3.50, MT3.60.                    ..

Front Loader LL4104 made in Korea by LS Tractor. High quality. Quick coupler EURO type. Compatible with tractor LS MT3.50, MT3.60.


Relief Valve

Hydraulic is automatically adjusted to prevent accidents caused by overloading the loader during operation



Quick attach (Euro type)

Connect the bucket to the loader and then release the lever, it will be tightly locked up for safe work.



Easy attach/ detach

The loader can be attached and detached easily with two fastening pins on the tractor, without any tools.



Quick coupler

A variety of hydraulic working can be used with the simple connection of quick coupler.



Heavy duty Stand

The heavy duty design stand make it possible to control the height according to the ground condition and attach / detach the loader easily and safely.



Floating, Bucket protection

When the bucket is down and the lever is pushed, the floating feature is turned on to protect the loader. When the bucket meets obstacles, the bucket connector folds automatically to protect the loader and tractor.




Hydraulic Control Lever

A one touch hydraulic control lever helps to work boom and bucket swiftly and easily.



Automatic Loader bucket leveling

The automatic loader is designed to improve bucket leveling by adopting parallel link during boom operation.



Front Loaders
Maximum lifting height 2303 mm.
Clearance dump 2019 mm.
Maximum dump angle 48 deg.
Digging depth 170 mm.
Lifting capacity 990 kg.
Weight 479 kg. without the bucket
Bucket width
Compatible with tractor MT3.50, MT3.60
